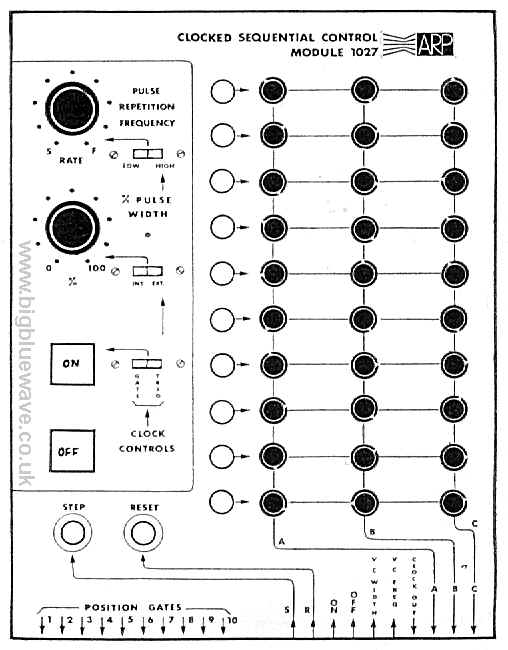

ARP 2500 module 1027 Sequencer
|
|
|
The 1027 is a ten state, three layer 'voltage memory'. Rows
A, B and C each compise of ten potentiometers for setting the Cv's.
Position is indicated by green lamp for each step with illuminated push
switches for on (run) and off. The pulse width control determines
the gap between steps with the stepping rate being set by the pulse repetition
knob at the top left of the panel. Control inputs for on, off step,
reset, width and rate are provided together with individual position
gates, allowing for complex and varied setups. |
