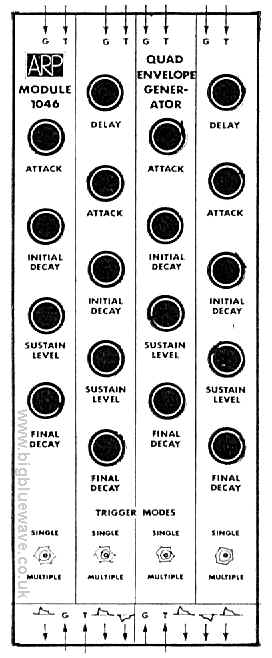

ARP 2500 module 1046 Quad EG |
|
|
|
This unit produces four separate envelope voltages, plus two in anti-phase for the control of audio etc. (via the 1006 VC amp) Controls are of the familiar ADSR type as common in many later synthesisers. The trigger mode switches select between a common gate or individual gates, not the usual interpretation of single or multiple trigger. |
