80-3 |
Voltage Controlled LFO |
||

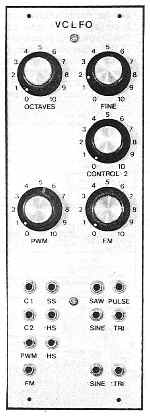

Based around the CEM 3340 IC, the 80-3 provides triangle, Sawtooth, pulse and sinewave outputs. The sinewave is derived from the triangle output of the3340 using the non linear response properties of a CA3080E OTA IC fed at a high input level. | |||
Controls | Inputs | Outputs | |
Octaves | CV 1 | Saw | |
Fine | CV 2 | Pulse | |
Control 2 | PWM | Sine | |
PWM Amount | FM | Triangle | |
FM Amount | Soft Sync | +/- 5V Sine | |
+ Hard Sync | +/- 5V Triangle | ||
- Hard Sync |
