Module 80-7A |
VC State Variable Filter |
||
|
|

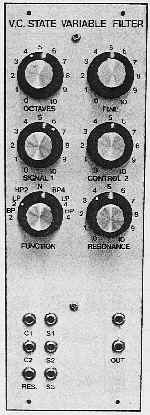

The 80-7A features seven filter responses: 12dB/Oct and 24 dB/Oct response in both low-pass and high-pass together with two band-pass settings and a band-reject or notch setting. The module utilises the CEM 3320 VCF IC | ||
| Controls | Inputs | Outputs | |
| Octaves | Control 1 | Out x 2 | |
| Fine | Control 2 | ||
| Signal 1 | Resonance | ||
| Control 2 | Signal 1 | ||
| Function | Signal 2 | ||
| Resonance | Signal 3 | ||
